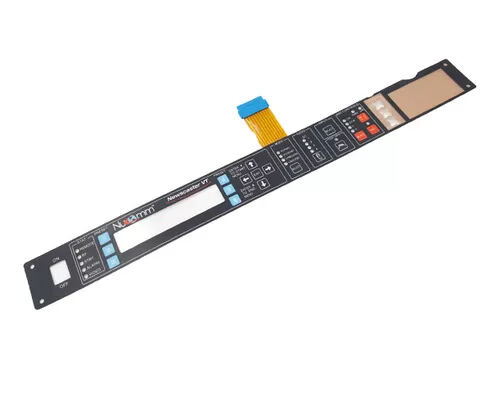

Tail Contact Pitch 254MM Custom Designed Membrane Switch Integrating Connector ZIF Or FPC Suitable for Home Appliances and Smart Devices

Product Description:

The Custom Membrane Switch is an advanced input solution designed to meet the diverse needs of various electronic devices and control panels. Engineered for durability and high performance, this Custom Membrane Switch Panel offers exceptional reliability with a life cycle of up to 1 million actuations, ensuring long-lasting functionality even in demanding applications. Whether for industrial equipment, medical devices, or consumer electronics, this membrane switch provides a seamless user interface that combines tactile feedback with sleek design.

One of the key features of this Custom Membrane Switch is its versatility in connector options, available with either ZIF (Zero Insertion Force) or FPC (Flexible Printed Circuit) connectors. This flexibility allows for easy integration into different electronic systems, providing secure and efficient electrical connections. The choice between ZIF and FPC connectors ensures compatibility with a wide range of circuit boards and design requirements, making the Custom Membrane Switch Panel highly adaptable for personalized applications.

In addition to its mechanical and electrical reliability, the Custom Membrane Switch is designed to perform under challenging environmental conditions. It can withstand high humidity environments, specifically tested at 40°C with 90% to 95% relative humidity for 240 hours, without compromising performance or durability. This makes it an ideal choice for applications exposed to moisture or humid climates, maintaining consistent operation and preventing failure due to environmental stress.

The membrane switch also supports a wide range of LED color options, including red, green, blue, yellow, and white. These customizable LED colors enhance the visual feedback and user experience by providing clear indication and status signals. Whether used for backlighting, status indication, or decorative purposes, the multiple LED color choices allow for a Personalized Membrane Switch Overlay that can be tailored to specific branding or functional needs.

Electrical safety and compatibility are critical factors, and this Custom Membrane Switch Panel operates at a voltage of ≤50V, ensuring safe integration into low-voltage electronic systems. This voltage rating is suitable for most consumer and industrial control applications, providing reliable performance while adhering to safety standards. The combination of low voltage operation and robust design minimizes the risk of electrical hazards and extends the overall lifespan of the device.

Customization is at the heart of this product’s appeal. The Personalized Membrane Switch Overlay can be designed to match precise specifications, including button layout, graphics, tactile feedback, and overall aesthetics. This allows manufacturers to create unique user interfaces that reflect brand identity and enhance usability. Whether it is a simple switch panel or a complex multi-button interface, the Custom Membrane Switch Panel can be tailored to the exact requirements of the application.

Overall, the Custom Membrane Switch offers a superior balance of durability, functionality, and customization. Its long life cycle, flexible connector options, resistance to harsh environmental conditions, multiple LED color choices, and safe voltage rating make it an excellent choice for a wide range of industries. By incorporating a Personalized Membrane Switch Overlay, users can achieve a highly functional and visually appealing interface that meets their specific needs. This product exemplifies the future of membrane switch technology, combining innovation with practicality to deliver outstanding performance and reliability.

Features:

• Custom Membrane Keypad Switch with a life cycle of 1 million actuations
• Personalized Membrane Switch Overlay designed for durability and performance
• Custom Designed Membrane Switch supporting a current of ≤100mA
• Equipped with NICOMATIC Female connector for reliable connectivity
• Circuit layer made from high-quality PET material
• Available LED colors: Red, Green, Blue, Yellow, and White

Technical Parameters:

Applications:

The ADMG Custom Membrane Keypad Switch is an ideal solution for a wide range of application occasions and scenarios where durability, precision, and customization are paramount. Manufactured in China under strict quality controls with ISO14001 and ISO9001 certifications, these switches guarantee reliability and environmental compliance. Whether you require a Custom Designed Membrane Switch for industrial machinery, medical devices, or consumer electronics, ADMG’s OEM/ODM services ensure tailored solutions that perfectly match your specific operational needs.

In industrial environments, the Custom Membrane Switch Panel offers excellent resistance to humidity (tested at 40°C with 90%~95% humidity for 240 hours), making it suitable for harsh conditions such as manufacturing plants, outdoor control panels, and automation systems. The use of a silver flex circuit combined with a durable PET circuit layer ensures high conductivity and flexibility, which is essential for devices subjected to frequent use and vibrations. Additionally, the 3M adhesive used in these membrane switches provides strong and lasting adhesion, ensuring the panel remains securely attached under various environmental stresses.

For medical and healthcare applications, the Custom Membrane Keypad Switch can be designed to meet stringent hygiene standards, offering easy-to-clean surfaces while maintaining tactile feedback for precise operation. The NICOMATIC female connector brand integrated into the panel provides secure and reliable connectivity, which is critical for devices requiring consistent performance and quick maintenance. These switches are also perfect for consumer electronics, including remote controls, handheld devices, and home appliances, where user experience and aesthetic design are vital.

The flexibility of ADMG’s Custom Designed Membrane Switch allows for minimum order quantities as low as 2 pieces, making it accessible for prototype development as well as mass production. Pricing is negotiable to accommodate different project scales and budgets. Packaging options include L/C, D/A, D/P, and T/T, providing convenience and security in international shipping. With a delivery time of just 5-8 working days, ADMG ensures prompt fulfillment of orders, supporting your project timelines efficiently.

In summary, the ADMG Custom Membrane Switch Panel is perfectly suited for a broad spectrum of applications ranging from industrial controls, medical devices, consumer electronics, to any scenario requiring a reliable, customizable, and high-quality membrane switch solution. Its robust construction, customizable design, and quick delivery make it a trusted choice for businesses seeking advanced membrane keypad technologies.

Customization:

ADMG offers top-quality Membrane Switch Custom Fabrication services with our Custom Membrane Keypad Switch and Custom Printed Membrane Switch products. Our OEM/ODM model is proudly made in China and certified with ISO14001 and ISO9001, ensuring the highest standards of quality and environmental management.

We accommodate a minimum order quantity of just 2pcs, with pricing available through negotiation to best suit your project needs. Packaging options include L/C, D/A, D/P, and T/T, providing flexible and secure transaction methods.

Our delivery time is efficient, typically within 5-8 working days, allowing you to meet tight deadlines without compromising quality. Each membrane switch features a life cycle of 1 million actuations, guaranteeing durability and long-term reliability.

The actuation travel ranges from 0.1 to 0.4mm, providing a responsive and tactile user experience. We use premium 3M adhesive for secure and lasting installation, supporting both surface mount and flush mount options to fit your design requirements.

Designed to operate at voltages ≤50V, our custom membrane switches ensure safe and efficient performance in various applications. Trust ADMG for your Custom Membrane Keypad Switch and Custom Printed Membrane Switch needs, backed by expert craftsmanship and reliable service.

Support and Services:

Our Custom Membrane Switch product is designed to provide reliable and durable user interface solutions tailored to your specific requirements. For technical support, please ensure you have the product model number and any relevant details ready to help us assist you efficiently.

Our technical support team is available to help with installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your membrane switch. We also provide design consultation services to help customize the membrane switch layout, materials, and functionality according to your application needs.

We offer repair and replacement services for defective units under warranty. For issues outside of warranty, our service team can provide cost estimates for repairs or recommend replacement options. Additionally, we provide detailed product documentation, including datasheets, installation manuals, and user guides to assist you in the proper use and care of the membrane switch.

For ongoing service, we recommend regular cleaning with a soft, damp cloth and avoiding harsh chemicals to prolong the life of the membrane switch. If you require custom modifications or upgrades, our engineering team can work with you to develop solutions that meet your evolving requirements.

Thank you for choosing our Custom Membrane Switch product. We are committed to delivering excellent support and service to ensure your complete satisfaction.

Packing and Shipping:

Product Packaging and Shipping for Custom Membrane Switch

Each custom membrane switch is carefully packaged to ensure maximum protection during transit. The switches are first placed in anti-static bags to prevent any electrostatic discharge damage. These are then cushioned with foam or bubble wrap to avoid any physical impact.

For bulk orders, the membrane switches are organized neatly in sturdy boxes with dividers to prevent movement and damage. The boxes are sealed securely with strong packing tape and labeled clearly with product details and handling instructions.

We offer multiple shipping options to meet your delivery requirements, including standard ground shipping, expedited air freight, and international courier services. All shipments are tracked, and customers receive a tracking number to monitor the progress of their order.

Our logistics partners ensure timely and safe delivery, and we provide insurance options for high-value orders for added peace of mind.

If you have any special packaging or shipping requests, please contact our customer service team, and we will do our best to accommodate your needs.
